Styling vertical Chinese, Japanese, Korean and Mongolian text

Sideways values of writing-mode

In addition to horizontal-tb, which is the normal setting for horizontal text, there are two other property values for writing-mode, which are primarily intended for use with scripts which are normally horizontal but that are being used vertically for captions, table headers, UI elements, and so forth. They may only rarely be useful for vertical Chinese, Japanese, or Korean, and are unlikely to be useful at all for Mongolian.

The value sideways-rl makes all characters to which it is applied lie on their right side, including Han characters. The text runs from top to bottom, and lines progress from right to left.

thead th { writing-mode: sideways-rl; }

The sideways-lr value makes all characters lie on their left side. Left-to-right text starts at the bottom of the line, and lines progress from left to right.

thead th { writing-mode: sideways-lr; }

The vertical- values of writing-mode are really intended for use in setting a normal vertical context for CJK or Mongolian text. On the other hand, if your content is in English and you want some title text to run from bottom to top vertically, say on a book spine or in table header, you would use writing-mode:sideways-lr, not one of the vertical- values. (To make Arabic script text run up the page, you'd use sideways-rl.)

Default character orientation

In vertical text, certain characters are normally upright and others are normally rotated sideways. The Unicode Standard assigns a property to each character and browsers can use this to determine the default orientation of a given character. For example, ordinary number digits in vertical text lie on their side by default, whereas fullwidth digits and enclosed alphanumerics, such as ①, are upright by default.

In some cases, rotation may also involve a transformation of a character – for example (vertical) vs. (horizontal). This change requires more than simple rotation, and you will need to use a font that supports the alternative glyphs.

Keeping embedded Latin text upright

Sometimes you may want to show embedded Latin letters standing upright, rather than running down the page, particularly for initialisms. Currently there are a number of ways of achieving this, but all have pros and cons.

Using dedicated CSS. One alternative is to apply the text-orientation property. Note how the letter i is upright in the following example.

If you want to restyle characters so that they stand upright, use markup such as span or abbr to identify the relevant text so that you can apply a CSS property. In the examples below we put the Latin text in a span with a class name upright.

To make the letter i upright, you would then use this CSS declaration:

.upright {
    text-orientation: upright;
    }

This option doesn't convert any characters to fullwidth. If you need to do so, you could apply additional CSS for that, if the browser supports it (see the next subsection).

Full-width transforms. If you transform the text into fullwidth characters, that may actually be sufficient on its own, since fullwidth characters are displayed upright by default.

The letters 'W3C' in the above example initially ran down the page, but applying the fullwidth transform using the following CSS makes them stand upright.

.upright {
    text-transform: full-width;
    }

This is appropriate for initialisms, but is not necessarily useful for all types of upright text, and note especially that this technique only works for Latin characters without accents! Text in other scripts will not have full-width equivalents, and so will need to use the approach described just below.

Using full-width characters. Another way to achieve this is to just use fullwidth characters, such as Ｗ３Ｃ. These will automatically be displayed upright by default. You don't need any markup in this case.

Of course, this also only works for Latin script text that doesn't include accents (since those are the only letters for which full-width variants exist).

Embedding other languages upright

Mixtures of vertical Chinese, Japanese, Korean and Mongolian text should just work as expected, but for other non-Latin scripts and Latin text with accents you will need to use the text-orientation property to make the text stand upright.

If the Latin text contains accents or diacritics as separate characters alongside their base character, you should not see the combining characters on separate lines.

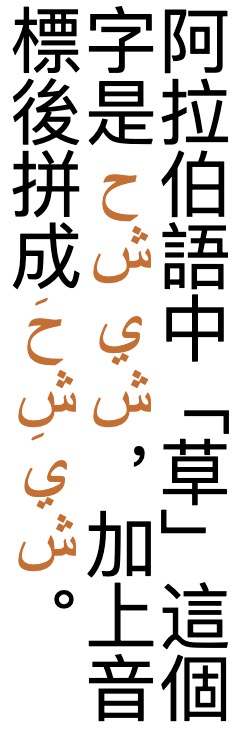

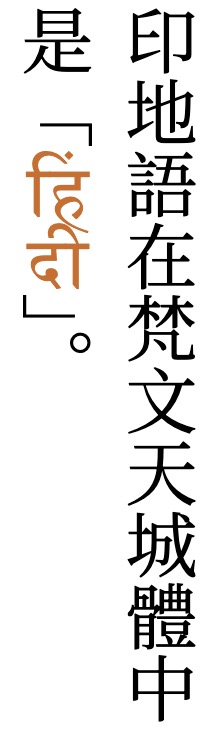

However, there are some scripts that present additional issues, although it should be said that these non-Latin scripts don't seem to be set upright often.

The sideways value of text-orientation

CSS provides one more value of the text-orientation property: sideways. This value only works if you have also applied the values of writing-mode that begin with vertical-. This value of text-orientation makes all characters lie on their right side, including Han characters.

It is not generally needed for Chinese, Japanese and Mongolian content, because they usually keep Han and Kana characters upright. And for text in other scripts, it is recommended that you use the sideways-rl and sideways-lr values of writing-mode (see Sideways values of writing-mode) to render text sideways, rather than using this value of text-orientation.

Writing-modes vs. text-orientation. Note that the result of using this property-value pair with with writing-mode:vertical-lr (below left) is different from that seen when using writing-mode:sideways-lr (below right) since the text starts at the top of the block and glyphs lie on their right side. Note also that when a line breaks, lines progress in the opposite direction to what you would normally want, because lines read later appear to the right of (visually, above) those read earlier.

WebKit hack. One place where this property value may be useful is to make Mongolian text look right in WebKit browsers. Using writing-mode:vertical-lr for vertical Mongolian text works fine in Blink and Gecko browsers, but WebKit browsers don't correctly orientate the glyphs. Adding this to your CSS can fix that, although hopefully WebKit will soon come into line with the other browser engines so that this is not needed.

Making inline digits run horizontally

The easiest way to apply this to numeric digits should be to use text-combine-upright with a digits x value. Unfortunately, it is still not supported by major browser engines.

It only works for digits in the ASCII range, and full-width Unicode codepoints are automatically converted to ASCII codepoints during the process. It doesn't work for other numbering systems, such as Arabic, Bengali, etc.

Let's suppose we have some HTML markup like the following, where the date 2015年5月22日 is inside a time element.

We can reproduce the rendering seen in the above example using the following CSS.

time {
      text-combine-upright: digits 2;
      }

This makes any double-digit numbers in the text run horizontally, but doesn't affect anything else. Note that you get the same effect by omitting the number after digits.

To fit longer numbers horizontally, change the number after digits. In the previous example 2015 is not horizontal. You could make it horizontal using text-combine-upright:digits 4. Then any numeric sequence up to four digits long will be horizontal. Four is the maximum number of digits you can layout horizontally in vertical text using this style.

If you'd like the unaffected numbers to be full-width, you can use the following styling. Full-width characters are displayed upright by default.

time {
    text-combine-upright: digits 2;
    text-transform: full-width;
    }

Use dedicated markup where possible. For example, for dates and times, you could just apply the style to the time element.

You can set this style on block elements such as p or section and the style will only be applied to runs of numbers. Be aware, however, that you may need to correct the behavior if you set text-combine-upright for a whole paragraph or more if that content contains numbers like 10,000, since the comma interrupts the sequence of digits; the result will be 10 set horizontally, and ,000 set running down the page.

Making non-digit inline text run horizontally

If you want to apply horizontal layout to non-digit text, you have to use text-combine-upright:all and surround the text you want to be horizontal with markup. You can still use the digits value for the numbers, but you'll need to use all for the other stuff.

For example, given some content marked up as follows

we can produce the desired effect with the following CSS.

.tcy {
    text-combine-upright: all;
    }

Note how we used two spans, in order to clearly indicate the boundaries of the horizontal text. This styling has to be set on inline markup.

The browser will try to squeeze the horizontal text into the width of a single character, so don't be too ambitious about how many characters you do this to. It is likely to be hard to read if you have more than three characters side-by-side.

Preventing inline text from running horizontally

Suppose you applied the digits styling to a whole section, and there's a number 10,000 in that section that you don't want to be affected. You can use the none value for that.

For example you could surround the number with a span with a class such as no-tcy that has the following styling.

.no-tcy {
    text-combine-upright: none;
    }

See the result in the figure below, where the right hand side shows before, and the left, after.

Choosing a font for horizontal inline text

The browser will try to use special narrow variants of the horizontal characters if they are included in the font being used (eg. OpenType's hwid and twid). After trying that, it will compress the glyphs to fit them in the space available. The former approach will produce a much nicer result, especially at larger sizes, therefore, it's worth using a font that has those extra glyphs (many do).

Forms

Text entry forms and select menus should flow down the page in vertical text, as illustrated in the following diagram. You will need to ensure that you specify sufficient vertical height to hold the form field.

Note that vertical lines and controls flow right to left for Japanese and Chinese controls, but left to right for vertical Mongolian.

Progress bars, meters, and buttons

Controls representing progress bars and meters should also be vertical by default when the text direction is vertical. There is currently (at time of writing) an open question about whether progress indicators should run bottom-to-top, or vice versa. (The illustration shows bottom-to-top because that's what the Gecko engine does.)

Lists

List content should also flow down the page in vertical text, with the counter at the top of the line, as illustrated in the following diagram.

Notice that in the figure above, the counters are arranged upright, with a dot separator alongside (ie. like tate chu yoko). The best way to make list counters upright is to use the following CSS.

li::marker { text-combine-upright: all; }

Unfortunately, the text-combine-upright property isn't currently supported by all browsers. One way around that would be to use custom counter-styles which define fullwidth characters as the counters. Unfortunately, that is also not supported by all major browsers at the moment. The following figure shows how that looks in Gecko or Blink, which do support custom counter styles.

Tables

In vertical content areas, table rows should run in the same direction as lines, ie. down the page, the rows should progress in the same direction as lines follow each other, and the text inside cells should also be vertical by default.

Captions. The numbers in the illustration above count cells in a row first, then move to the next row. As you can see, the columns are now horizontal.

User-driven test pages

The behaviour of browsers can be explored using the following user-controlled test pages:
